Lock In Price

Used 2017 Grand Design Solitude 384GK R

Fifth Wheel

Stock #P1869A

Waco, TX

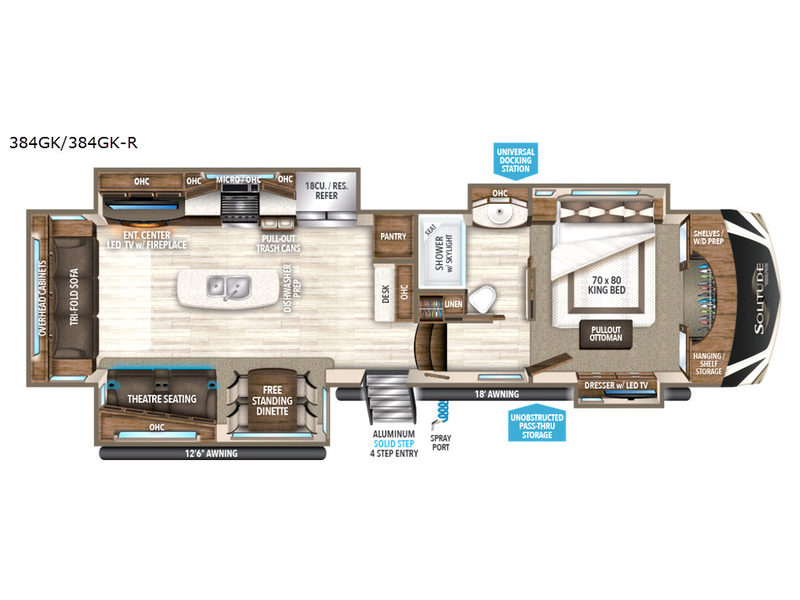

Floorplan - 2017 Grand Design Solitude 384GK R

1 of 24

+24

Sleeps 4
4 Slides
Rear Living Area

Kitchen Island

41ft Long
13,450 lbs

See All Specs

Specifications

Sleeps	4	Slides	4
Length	40 ft 7 in	Ext Width	8 ft 5 in
Ext Height	13 ft 5 in	Hitch Weight	2740 lbs
GVWR	16000 lbs	Dry Weight	13450 lbs
Fresh Water Capacity	93 gals	Grey Water Capacity	100 gals
Black Water Capacity	50 gals	Tire Size	16"
Furnace BTU	40000 btu	Available Beds	King
Refrigerator Type	Stainless Steel Residential 4-Door	Convection Cooking	Yes
Cooktop Burners	3	Number of Awnings	2
Axle Weight	14000 lbs	LP Tank Capacity	60
Water Heater Capacity	12 gal	Water Heater Type	Gas/Electric
TV Info	LR LED, BR LED	Awning Info	electric
Axle Count	2	Washer/Dryer Available	Yes
Shower Type	Shower w/Seat	VIN	573FS4223H1107486

Description

Enjoy camping in this Solitude fifth wheel model 384GK-R by Grand Design. This model features a rear living layout, four slides for added space inside, and a private front bedroom with a KING size bed, and more!

Enter and find a spacious combined kitchen and living area with dual opposing slides. There is seating to your immediate left as you enter, and along the rear wall. In the slide to your left you will enjoy a free standing dinette with four chairs, plus theatre seating further down. Along the rear wall there is a tri-fold sofa with storage above. You can easily entertain guests here, and it also provides sleeping space to overnight guests.

The slide opposite the door side features an entertainment center with a LED TV and fireplace. There is also a three burner range and microwave for cooking with counter space on either side, plus residential refrigerator for your perishables within the slide out. There are two handy pull-out trash cans as well. Along the interior wall find a pantry, and a desk with overhead storage. And don't forget about the kitchen island with double sinks, extra counter space and storage, plus a space for an optional dishwasher.

Head up the steps to a front bedroom and bath. The bath offers a large shower with seat and skylight, plus a toilet and linen cabinet. There is also a slide out vanity with sink and medicine cabinet which is attached to the bedroom slide out giving you much added space. A second bath entry door slides to provide easy access to the bedroom.

You can also enter the front bedroom from the hallway door. Here you will find a slide out dresser and LED TV on your right. Opposite enjoy sleeping on a slide out KING size bed with pullout ottoman off the foot of the bed, and a full front closet with shirt storage. It is also prepped for a washer and dryer if you choose to add the units.

You will appreciate the exterior unobstructed pass-through storage when loading and unloading your outdoor gear, and the universal docking station as well, plus so much more!

If you wish to choose an 18 cu. ft refrigerator in place of the residential model included here, then choose model 384GK.

Features

Standard Features (2017)

Construction

Drop Frame Chassis

Audio & Video

LED TV in Master Bedroom (Mandatory)
King Jack Antenna

Bathroom

One-Piece Fiberglass Shower with Glass Door
Porcelain Toilet
Linen Storage with Cabinet Doors
White Porcelain Vessel Bowl Sink

Bedroom

Residential Style Headboard
Under Bed Storage Area
Individually Switched Reading Lights Over Bed
60" x 80" Queen Bed (NA 384GK)
King Bed (Std 384GK) (NA 374TH) (Optional)
Window Above Master Bed Headboard

Exterior

Heavy Duty West Lake© Tires w/NitroFill™
Dual Pane Windows (Optional)
Slide-Out Awning Toppers (Optional)
6-Point Hydraulic Leveling System (Mandatory)
Front Cap Windshield (374TH, 379FLS)
Back-Up Camera Prep

HVAC & Plumbing

Heat Pump AC Upgrade in Living Area (Optional)
Fireplace with Electric Heater (Mandatory)
12-Gallon Gas/Electric Water Heater
Exterior Spray Port (Door Side)

Interior

Double Tri-Fold Hide-A-Bed Sofa's (374TH, 375RES, 377MBS, 379FLS)
Leaded Glass Cabinet Door Inserts (Select Areas)

Kitchen

Convection Microwave (Mandatory)
Oversized Kitchen Pantry
Residential Kitchen Faucet with Pullout Sprayer
Stainless Steel Range w/22" Oven and Flush Cover
Real Tile Backsplash
Hardwood Kitchen Light Soffit
Dishwasher Prep (300GK, 310GK, 360RL, 384GK)
Stainless Steel 18 Cu. Ft. 4-Door Refrigerator
Solid Surface Countertops & Sink Covers (Mandatory)
Residential Stainless Steel French Door Refrigerator (IPO 18 cu. ft. Refrigerator) (Optional)

Utilities

75 Amp Converter
12V Tank Heaters (Mandatory)
Generator Prep (Optional)
Onan 5.5kw LP Generator (Requires Generator Prep) (Optional)

Packages

Max-Built Construction Package - (Mandatory)

High-Gloss Gel Coat Exterior Sidewalls
5-Side Aluminum Cage Construction
101" Wide body Construction
Slam-Latch Baggage Doors with Magnetic Catches
Frameless Tinted Windows
50 Amp Service with Detachable Power Cord
Heavy Duty 7,000 lb. Axles
Color Matched Fender Skirt
Roof Ladder
Painted Gel Coat Fiberglass Front Cap
Satellite/Cable Prep (All TV Locations)
LED Tail Lights
12-Volt Battery Disconnect
Walk-On Roof
Exterior Security Light
76" x 30" Entry Door
16" Aluminum Wheels
TPO Roof Covering w/12-Year Warranty

Peace of Mind Package - (Mandatory)

Slide-Out Selector Valves
Self Adjusting Brakes
Washer/Dryer Prep
Residential Bedroom Dresser
16" Spare Tire (Undermount)
Power Patio Awning w/Integrated LED Lighting
Exterior Cable/Satellite Plug-In
Sewer Hose Storage Area
Whole House Water Filtration System
Pull-Out Ottoman at Bed Base (NA 374TH)
Easy Clean Solid Surface Steps
Kitchen 12-Volt High Power MaxxAir Fan with Rain Sensor

Residential Living Package - (Mandatory)

Roller Shade Window Coverings
Quad Entry Step
Keyed Alike (One Key For All Entry and Baggage Doors)
Stealth AC System (Dual 15k BTU AC's w/Racetrack Ducting)
Tri-Fold Hide-A-Bed Sofa
Hallway Handrail
Congoleum Flooring w/3-Year Warranty (Main Floor & Upper Landing Area)
Hardwood Cabinet Doors and End Tables
Solid Surface Countertops & Sink Covers
Interior Blue LED Accent Lighting
Smoke Detector, LP Alarm, Carbon Monoxide Alarm
Power Reclining Theatre Seating w/LED Lighting Package (Includes Heat and Massage Function)
Stainless Steel Undermount Kitchen Sink
HDMI Stereo/CD/DVD Entertainment System w/App Controls
Exterior Speakers
Bedside 110-Volt Outlets (2)
Night Stands
Big Screen LED TV in Living Area
Hardwood Window Treatments
Recessed LED Ceiling Lighting
Signature Wall Mounted Dinette Table w/ 4 Padded Chairs (2 Stow Away Chairs)

Weather-Tek Package - (Mandatory)

Fully Enclosed Underbelly w/Heated Tanks and Storage
All-in-One Enclosed and Heated Utility Center
35k BTU High Output Furnace
R-Value Equivalent (R-40 Roof / R-45 Floor / R-11 Sidewalls / R-24 Slide room Floor)
High Capacity Heat Ducts
Enclosed and Heated Low Point Drains
Attic Vent

Please see us for a complete list of features and available options!

All standard features and specifications are subject to change.
