Used 2017 Winnebago Grand Tour 42QL

Motor Home Class A - Diesel

Stock #P5197

Katy, TX

WOW! Take a look at this Winnebago! Style and class!

1 of 16

+16

List Price: $289,995

Payments From: $1,910 /mo.

Sleeps 3
3 Slides
Outdoor Kitchen

Bath and a Half

43ft Long

See All Specs

Specifications

Sleeps	3	Slides	3
Length	43 ft	Ext Width	8 ft 6 in
Ext Height	12 ft 10 in	Int Height	7 ft
Hitch Weight	15000 lbs	GVWR	45660 lbs
Fresh Water Capacity	85 gals	Grey Water Capacity	71 gals
Black Water Capacity	51 gals	Fuel Type	Diesel
Miles	12843	Engine	Cummins 8.9L Turbo
Chassis	Maxum	Horsepower	450 hp
Fuel Capacity	150 gals	Wheelbase	279 in
Available Beds	King	Refrigerator Type	Residential French Door with Freezer
Convection Cooking	Yes	Cooktop Burners	2
Shower Size	42" x 30"	Number of Awnings	2
Axle Weight Front	15660 lbs	Axle Weight Rear	30000 lbs
LP Tank Capacity	5.6	AC BTU	13500 btu
TV Info	LR 50" HDTV, BR 28" HDTV, Ext. 40" HDTV	Awning Info	16' Power, 19' Power
Washer/Dryer Available	Yes	Gross Combined Weight	60660 lbs
Shower Type	Standard	Electrical Service	50 amp
VIN	4UZFCUCY8GCHW5197

Description

Step inside this luxurious Grand Tour class A diesel coach by Winnebago. Model 42QL features one and a half baths, a king size bed, triple slide outs including one full wall slide, a fireplace, an exterior 40" flat screen TV, plus Tailgate Package that includes a single burner range top, refrigerator/freezer, and more!

As you enter in front of the passenger cab seat and look back you will see a wide open interior thanks to the full wall slide along the road side, and a large slide out along the curb side too.

On the right find an L-shaped extendable sectional sofa that is 52" x 76" with an ottoman included. The opposite side in the living area the full wall slide begins with a corner entertainment center including a 50" flat screen TV featuring a fireplace below. There is also a pull-out flip-up table, and recliner. With the two cab seats that swivel around there is ample seating for everyone to enjoy.

The kitchen and dining area is next with a few appliances being nestled into the second half of the sectional sofa slide out. You will find a pull-out island, plenty of counter space, a two burner range, and microwave/convection oven. There is also overhead cabinetry and a double kitchen sink. A residential refrigerator and pantry are just beyond the extendable dining table and chairs across the unit in the full wall slide out.

There is a convenient half bath along the curb side that features a toilet, sink, and linen cabinet.

A sliding door can easily section off the bedroom area found just beyond the half bath which includes a king bed slide out, nightstands on either side of the bed, plus overheads storage along the curb side. There is plenty of wardrobe storage opposite along with a 28" flat screen TV within the full wall slide that ends with the second wardrobe.

A rear full bath offers a toilet, BIG shower, a linen cabinet that slides out into the room, a vanity with sink and overhead storage, plus a washer and dryer for added convenience. No need to return home with loads of dirty laundry to do!

On the outside you can enjoy a 40" flat screen TV with extendable/pivot mounting bracket, and the Tailgate Package that features a single burner range top, steel counter, refrigerator/freezer, cold water access port, and so much more!

Features

Standard Features (2017)

Maxum Chassis

Cummins® ISL 8.9L 450-hp turbo-charged diesel engine
UltraSteer passive tag axle (45RL)
Adjustable brake and accelerator pedals
Allison® 3000 MH 6-speed electronic transmission w/3-stage compression brake
Information display center
ZF™ Independent Front Air Suspension, V-Ride rear air suspension
240-amp. alternator
Air brakes w/ABS
Quick-connect air accessory
HWH automatic hydraulic leveling jacks w/3-position controls
Towing package w/7-pin trailer wiring and I.P. wiring
Trailer hitch 15,000-lb. drawbar/1,500-lb. maximum vertical tongue weight
Stylized aluminum wheels
Side radiator (45RL)

Optional

Automatic air leveling system

Cab Conveniences

Villa luxury cab seats driver and queen passenger seat w/6-way power, power footrests, heat and massage, remote swivel, power lumbar support, manual recline, adjustable armrests
3-point seat belts
Infotainment Center with Rand McNally RV GPS 10.4" touch screen color monitor w/split screen function, 2nd monitor, Rand McNally RV GPS safe & easy routing, amenities & tools, trips & content, turn-by-turn voice guidance, AM/FM radio, steering wheel and handheld remote, SiriusXM™ (subscription not included), compass, outside temperature, Bluetooth™, color rearview camera, sideview camera display, USB, house mode feature
Video camera system
Tilt/telescoping SmartWheel™ steering wheel
Cruise control
Powered entrance and storage door locks w/remote keyless entry
Powered adjustable mirrors w/defrost, sideview color cameras and turn signal
12-volt powerpoints and USB chargers
Powered stepwell cover
2-speed built-in defroster fans
MCD powered solar/blackout roller shades (windshield)
Chassis/house battery radio power switch
Sirius satellite radio
Mobileye® Collision Avoidance

Optional Equipment

Infinity Premium Cab speakers (system includes 11 speakers)

Interior

Electric fireplace adjustable thermostat and flame, handheld remote, electric timer w/automatic shut-off
50" 4K UHDTV (42QL)
60" 4K UHDTV (45RL)
Blu-ray™ Home Theater w/soundbar and subwoofer
Dirt Devil® central vacuum system w/VacPan®
Security safe
HDMI 4x4 Matrix central video selection system
Satellite system ready
Skylight w/powered shade
Contour™ windows tinted, dual-glazed, thermo-insulated
Soft vinyl ceiling
Powered ventilator fan w/wall switch (galley)
MCD manual solar roller shades (driver/passenger, lounge, dinette, bedroom windows)
MCD powered blackout roller shades (driver/passenger, lounge, dinette, bedroom windows)
LED ceiling lights w/dimming feature
Accent lights above front overhead cabinets and ceiling trim panels
Jack® digital TV amplified antenna system
Stackable washer/dryer
Multi-plex wall switches
OnePlace® system center
USB chargers (cab, dining)
110V receptacle w/USB port (bedroom)

Optional

Winegard® Trav’ler® automatic multi-satellite antenna for Dish Network and DIRECTV
Winegard Rayzar® automatic TV antenna system
Yamaha® Premium Sound System (lounge and bedroom)
Digital amplified TV antenna

Galley

Quartz countertops w/decorative backsplash and bamboo sink covers (45RL)
Corian countertops w/decorative backsplash (42HL, 42QL)
Stainless steel microwave/convection oven w/exterior vented range fan and touch control
Drawer-style dishwasher
2-burner induction range top w/rapid cooling ceramic glass top and electronic controls
Residential French door refrigerator w/freezer drawer, water and ice dispenser
Cold water filtration system
Double stainless steel sink

Bath

Quartz countertop w/decorative backsplash
Delta® Handheld, flexible showerhead
Skylight (45RL)
Porcelain toilet w/power flush
Area rug (master bath)
BIG Shower 42"x30" (42QL)
BIG Shower 42"x35" (45RL)
Fold-down shower seat (45RL)
Teak removable shower mat
Corian shower surround w/decorative inserts
MCD manual solar/blackout roller shades
Powered ventilator fan
Powered roof vent
Towel bar(s)
Towel ring(s)
Medicine cabinet
Robe hook(s) (42QL)
Tissue holder
Soap dispenser

Optional

Magic Mirror 29" HDTV (45RL)

Bedroom

28" HDTV (42QL)
43" Magic Mirror HDTV (45RL)
Ceiling fan
Powered king bed w/Ideal Rest® Natural Reserve digital comfort control mattress and remote controls
Bedspread, pillows, and shams
Headboard

Exterior

Exterior entertainment center 40" HDTV w/extendable/pivot mounting bracket, home theater soundbar system, and subwoofer
Auxiliary docking lamps
Driver-side service bay lights
Slideout storage compartment tray (extends out either side of the coach)
2 powered multi-stage, armless acrylic patio awnings w/LED lights and motion sensor
Powered acrylic entrance awning w/LED lights
Acrylic window awnings
KeyOne™ lock system
Lighted assist handle w/keyless entry keypad
Lighted storage compartments
Storage containers w/lids
7' folding step ladder
Stepwell lights w/interior switch
Automatic entrance steps
Lower front protective mask
Premier clearcoat automotive finish
Rear mud flaps
Full-width rear mudguard
Pull-Out Tailgate Package single burner induction range top, steel counter, refrigerator/freezer, bottle opener, garbage bag holder, paper towel holder, cold water access port, flexible water spout w/shut off, 15' coil water hose, LED light fixture, 110-volt/AC receptacle, large storage area

Optional

Polished stainless steel on lower valance doors and panels
Exterior entertainment center 55" HDTV w/extendable/pivot mounting bracket, home theater soundbar system, and subwoofer

Heating and Cooling Systems

TrueAir® Maximum Comfort A/C 3-13,500 BTU roof air conditioners w/2 heat pumps and 3 condensation pumps
Aqua-Hot® 450 hydronic dual-zone heating system w/continuous hot water and engine pre-heat
Triple-zone thermostat

Optional

Heated floor

Electrical System

Service Center 120-volt AC power, cable input, portable satellite dish hook-up, QuickPort® service connection hatch, multi-plex panel, solar control module
PowerLine® Energy Management System
OnePlace® 10" touch screen systems control center
Auxiliary start circuit
50-amp. power cord w/reel
100-watt solar panel battery charger
2,800-watt AC/DC Pure Sine inverter/charger w/remote panel
10,000-watt Cummins Onan® Quiet Diesel™ generator
AC/DC electrical distribution system
6 maintenance-free AGM deep-cycle Marine/RV sealed coach batteries
Battery disconnect system (coach and chassis)
Automatic dual-battery charge control
Safe Guard® shoreline/generator automatic changeover switch w/surge protection
Chassis battery charger/maintainer
Automatic generator start system
Hide-a-power pop-up receptacle w/USB chargers and outlets (45RL)

Plumbing System

Service Center multi-plex monitor panel, pressurized city water hookup w/diverter fill, drainage valves, exterior wash station, glove holder, holding tank flushing system, paper towel holder, 20' sewer hose w/QuickConnect®, QuickPort service connection hatch, soap dispenser
TrueLevel™ holding tank monitoring system
Water supply hose w/reel
Full coach water filtration system
Portable LP tank w/gauge and LPG accessory connection (patio area)
On-demand water pump
Winterization Package water heater bypass valve and siphon tube
Heated holding tank compartments

Safety

LP, smoke, and carbon monoxide detectors
10 BC fire extinguisher
Ground fault interrupter
Daytime running lamps
Fog lamps
High-mount brake lamps

Warranty

12-month/15,000-mile basic limited warranty
36-month/36,000-mile limited warranty on structure
10-year limited parts-and-labor warranty on roof skin

See us for a complete list of features, available options, and warranty info.!

All standard features and specifications are subject to change.

Favorite RVs

Save your favorite RVs as you browse. Begin with this one!

Excellent Customer Service
Everything that you might stress out about when buying something large like this they handled with ease. We’ve had an RV for years, but they really did everything they could to help us through the process and ease our minds. Not once did I feel rushed or pushed into something I didn’t love. I was sold

Crystal
Excellent Customer Service
These folks are really wonderful. I was truly in a bind as I was headed out of town and Tom, the Service Manager came to help, on his own time. I went by a week later and thanked them and they helped me again. Such a terrific experience, I highly recommend them.

John
Excellent Customer Service
The service here was incredible and super fast ! I had gone to 2 other places including Holiday World and had no luck getting approved with low credit but Zach at RV Station got me approved the same day. Got approved on a wednesday and they offered to deliver it for me that same Friday . Definitely

Jose

We are here to help, call us at
346-322-1455 or Contact Us

We are here to help!

346-322-1455
Contact Us
Request Quote

RV Station Group is not responsible for any misprints, typos, or errors found in our website pages. Any price listed excludes sales tax, registration tags, and delivery fees. Manufacturer pictures, specifications, and features may be used in place of actual units on our lot. Please contact us @833-305-2430 for availability as our inventory changes rapidly. All calculated payments are an estimate only and do not constitute a commitment that financing or a specific interest rate or term is available.

Used 2017 Winnebago Grand Tour 42QL

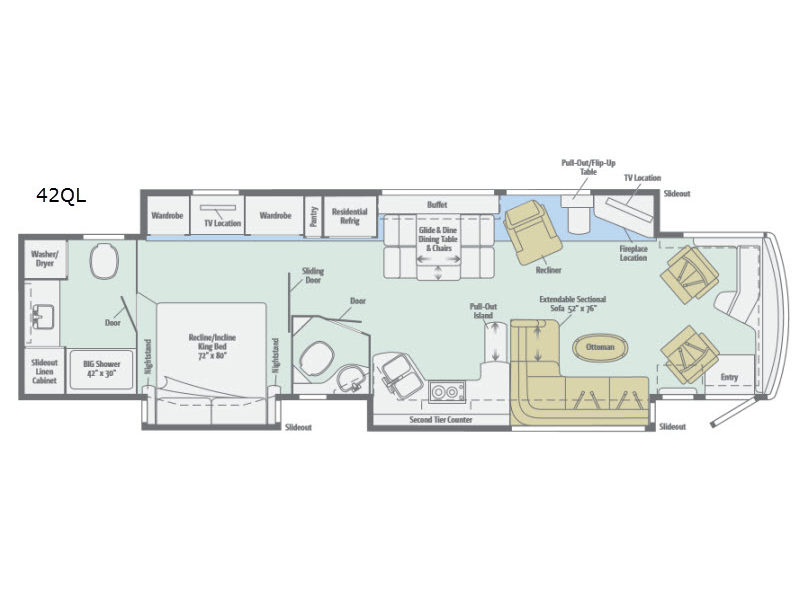

42QL Floorplan
