Used 2020 DRV Luxury Suites FullHouse LX455

Toy Hauler Fifth Wheel

Stock #15602A

Waco, TX

1 of 6

44ft long
19,800 lbs
Sleeps 6

4 slides
Kitchen Island

Bath and a Half

See All Specs

Specifications

Sleeps	6	Slides	4
Length	44 ft 2 in	Ext Width	8 ft 5 in
GVWR	24000 lbs	Dry Weight	19800 lbs
Fresh Water Capacity	100 gals	Grey Water Capacity	75 gals
Black Water Capacity	50 gals	Tire Size	17.5"
Furnace BTU	40000 btu	Fuel Capacity	60 gals
Number Of Bunks	1	Available Beds	King
Refrigerator Type	Residential Stainless Steel French Door	Refrigerator Size	20 cu ft
Convection Cooking	Yes	Cooktop Burners	3
Shower Size	48"	Number of Awnings	1
Axle Weight	8000 lbs	Garage Size	12 ft
LP Tank Capacity	40 lbs	Water Heater Capacity	12 gal
Water Heater Type	Gas/Electric DSI	AC BTU	45000 btu
TV Info	LR 55" LED TV, BR 32" LED TV, Garage 49" LED TV	Awning Info	Power with Aluminum Weather Shield
Axle Count	3	Washer/Dryer Available	Yes
Number of LP Tanks	2	Shower Type	Standard
Electrical Service	50 amp	VIN	5KEAG4635L1435941

Features

Standard Features (2020)

Frame/Running Gear

Goodyear® 17 1/2" H-Rated Re-Groovable Tires
Heavy Duty Grease Bolt Shackles with Bronze Bushing
Automotive Style Disc Brakes (Most Models)
Heavy Duty 8,000 Lb. Rated Axles
Commercial Grade EZ Lube Hubs
15" Triple Stacked Box Tube Frame
101" Wide Body
Industrial Hydraulic System for Jacks and Lower Level Slides
Electric Bedroom Slide
Slide Outs with Select Push Button Controls
Pinless, Industrial Hydraulic Front Landing Jacks at 5 Degree Outboard Angle

Construction: Floor

3" Thick Floor
14" O.C. Floor Aluminum Floor Joists
Screwed and Glued Joist Construction
5/8" Tongue and Groove Plywood Flooring
Four Season Perimeter Heat Ducting in Floor
Residential Rated R29 Formaldehyde Free Wool Insulation

Construction: Walls/Slides

3 1/4" Thick Walls/Slides
16" O.C. Stud Spacing
Screwed and Glued Aluminum Stud Construction
1/4" Monsanto® Fome-Cor Vapor Barrier (Eliminates Condensation)
1/4" Thick High Gloss Gelcoat Fiberglass
Residential Rated R16 Formaldehyde Free Wool Insulation

Construction: Roof

16" O.C. Rafter Spacing
Residential Rated R25 Formaldehyde Free Wool Insulation
1/2" Plywood Roof Overlayment
Seamless, 1-Piece Rubber Roof
Soft-Touch Vinyl Ceiling, Including Interior Slide-Out Ceilings

Exterior

Straight Roof Line with 8' Tall Interior Slide Out Height
Subzero Thermo-Pack High Density Wool Insulation
High Gloss Gelcoat Fiberglass
High Gloss Gelcoat Fiberglass Molded Caps
Custom Painted Exterior with Clear Coat
Frameless Tinted Safety Glass Windows
Back-Up Lights with 50 Watt Halogen Lights
Commercial LED Exterior Clearance Lights
LED Docking Lights
Dual 78" Entry Door
Removable Storm Door Panels
Metal Slam Door Compartment Latches
Extra Thick Compartment Doors with Gas Struts
Easy Access Light Switches for Basement
Custom Enlarged Control Center with LED Lighting
Lend-a-Hand Exterior Grab Handle
Power Awning with Aluminum Weather Shield (Over Both Entry Doors)
Water Pump Switch at Outside Hookup Center

Systems/Tanks

50 Amp Service with Detachable Cord
80 Amp 12 VDC Converter
100 Gal. Fresh Water Tank
75 Gal. Grey Water Tank with Power Flush
50 Gal. Black Water Tank with Power Flush
SeeLevel Tank Monitoring System on All Tanks
Residential Type 1/2" Water Lines
Exclusive Copper Water Manifold with Individual Shut-Off Valves
Whole House Water Filtration System
Multi-Switch Water Bypass System
Slide Out Propane Tray with Dual 40 Lb. Tanks
12VDC Battery on Pull Out Tray
12 Gal. Gas/Electric DSI Water Heater
40,000 BTU Furnace with Custom Plenum
Residential 5 Duct Heating System with 6" Ducting
Forced Heat Ducting to Tanks/Water System
Fully Ducted A/C System with Cold Air Return
Triple 15,000 BTU Low-Profile A/Cs
Solar Prep
HD Roof Satellite Prep for Dual DVR Receivers
HD Ground Satellite and Cable Prep
HD TV Antenna

Interior: Luxury Living Room/Dinette

Hand Laid Vinyl Floor Tile
Residential Rebond Carpet Pad
Plush Residential High Durability Carpet
Hazelnut/Mocha Cherry Solid Hardwood Cabinetry
Solid Hardwood Fascia Trim Around Slide Outs
Solid Hardwood Cabinet Stiles (Pocket Drilled/Screwed)
Concealed Cabinet Door Hinges
Raised Panel Cabinetry
Soft-Close Full Extension Metal Drawer Guides
LED Interior Ceiling Lighting on Dimmer Switches
Utility Closet with Coat Storage and Centralized Control Station
Interior Ceiling Fan
Custom Hardwood Dinette Buffet with Solid Surface Top (Some Models)
Dinette Table with Hidden Leaf Extension (Some Models)
(2) Hardwood Dinette Chairs with Fabric Accent (Some Models)
Crown Molding Throughout
HD Wiring Throughout

Interior: Gourmet Kitchen

20 Cu. Ft. Residential Stainless Steel French Door Refrigerator
Stainless Steel Convection/Microwave
Pull-Out 13 Gal. Garbage Can
Deep Double Bowl Stainless Steel Sink with Sink Covers
Residential Kitchen Faucet with Sprayer
High Polished Solid Surface Countertops
Sealed 3 Burner Cooktop with Hinged Countertop Lift
Custom Appliance Garage with Pull-Out Tray (Most Models)
Lighted Pantries and Kitchen/Bathroom Toe Kicks

Interior: Master Bath/Hallway

Hardwood Steps
Hand Laid Vinyl Tile in Hallway/Bathroom
No Carpet in Hallway
Washer/Dryer Prep
Heat and A/C Ducting in Bathroom
Maxxair® Fan in Bathroom
1-Piece Fiberglass Shower with Molded Seat
Sky-Light Over Shower with LED Pot Light
Porcelain Toilet with Water Saver Spray
Macerator Toilet (Some Models)

Interior: Master Bedroom

Custom Walk-in Front Closet with Built in Dresser (Most Models)
Real Cedar Lined Front Closet
Custom Hardwood Wardrobe Doors
King Bed Suite 72" x 80" with Innerspring Mattress (Most Models)
Full Storage Under Bed Base
Separate Bedroom Ceiling Speakers
Over the Bed Reading Lights on Separate Switches
Vanity Slide

Garage

Industrial Metal Overhead Cabinetry
LED Lighting
49" LED HD TV
Touch Screen/Blue Tooth Garage Audio/Entertainment System
Dual 30 Gal. Fuel Tanks with Fuel Pump and Fill Station

Full House Package (Forced Option)

55" LED TV and Home Theatre Package
32" LED Bedroom TV Package
49" LED TV Garage
Garage Entertainment System with Touch Screen
Goodyear® 17 1/2" H-Rated Spare Tire
Side Mounted Fold-Out Ladder
Frameless Thermopane Windows
Dual Door 4-Step Entry

Executive Package (Forced Option)

MCD Day/Night Roller Shades
Built-In Fireplace
Magnum 1000W Inverter with Dual 6V Batteries
Maxxair® Fan with Rain Sensor - Bathroom
Maxxair® Fan with Rain Sensor - Kitchen
Power Management System
Six Point Hydraulic Leveling System
One Touch Auto Leveling
Keyless Entry Door (Both Doors)
Onan 5.5 Gasoline Generator with Auto Gen. Start

Options

Cabinetry (Standards)

Hazelnut
Latte
Mocha Cherry

Decor (Standards)

Affinity
Moonstone
Providence

Flooring (Standards)

Aged Asphalt
Portabello
High Ounce Carpet

Countertop(Standards)

Caramel Drizzle

Interior

Power Recliner Theatre Seating/Recliners
Hazelnut Folding Chair
Mocha Cherry Folding Chair

Entertianment

32" LED HDTV Outdoor Entertainment (Some Models)
Winegard® Trav’ler HD Auto Satellite
WiFi Ranger Wireless Router

Kitchen

3 Burner Range/Oven IPO 3 Burner Cooktop

Bedroom

Built in Front Wardrobe Safe with Keyless Entry
Queen Bed Suite

Garage

Electric Drop Down Sofa/Bed
Electric Drop Down Bed
Fold-Up Outdoor Patio
3 Season Patio Door
Removable Table

Systems/Vents/Fans

Heat Pump
Maxxair® with Switch Control – Garage
Splendide® Front Load 2 piece
Splendide® XC 2,100 Combo

Construction/Running Gear

Power Cord Reel (Some Models)
HBA Brake Cam (To be Ordered Special for Customers with GM Trucks)

Exterior/Awnings

Slide Toppers
Power Dinette Slide Awning with Weathershield
Slide Out Storage Tray (36" x 90")
Audible Wireless Backup Camera System
CSA

Partial Body Paint (Standards)

Grey Stone
Twilight Mist

See us for a complete list of features and available options!

All standard features and specifications are subject to change.

All warranty info is typically reserved for new units and is subject to specific terms and conditions. See us for more details.

Favorite RVs

Save your favorite RVs as you browse. Begin with this one!

Excellent Customer Service
While at the Houston RV show, and seeing so many different RV’s, my husband and I found our dream TT that fit our need! The folks with RV Station were very helpful and made our first experience easier than you might imagined.

Karrie
Excellent Customer Service
We went to visit RV Station on a Saturday and met Ted. We had visited all the other big box RV stores and we’re not impressed with the salespeople. Ted, Kirby and all of the staff at RV Station, Katy are awesome. Our walkthrough with Jesse was amazing. He took his time and explained everything and being

Elaine
Excellent Customer Service
This was a true buyers experience! I was treated with respect every time I came in. I bought a used RV and was still treated like I was buying a brand new diesel pusher. Renea was very friendly and knowledgeable. Steve was a pleasure to work with, Kurtis was very understanding to my needs. Laura was

Kevin

We are here to help, call us at
254-200-0037 or Contact Us

We are here to help!

254-200-0037
Contact Us
Lock In Price

RV Station Group is not responsible for any misprints, typos, or errors found in our website pages. Any price listed excludes sales tax, registration tags, and delivery fees. Manufacturer pictures, specifications, and features may be used in place of actual units on our lot. Please contact us @979-268-2701 for availability as our inventory changes rapidly. All calculated payments are an estimate only and do not constitute a commitment that financing or a specific interest rate or term is available.

Manufacturer and/or stock photographs may be used and may not be representative of the particular unit being viewed. Where an image has a stock image indicator, please confirm specific unit details with your dealer representative.

Used 2020 DRV Luxury Suites FullHouse LX455

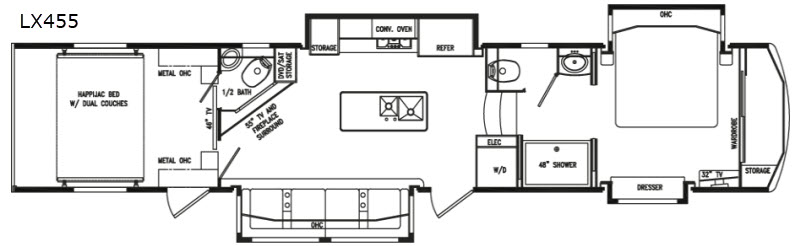

LX455 Floorplan
